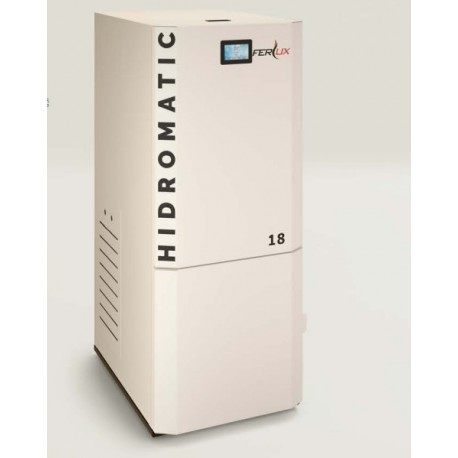

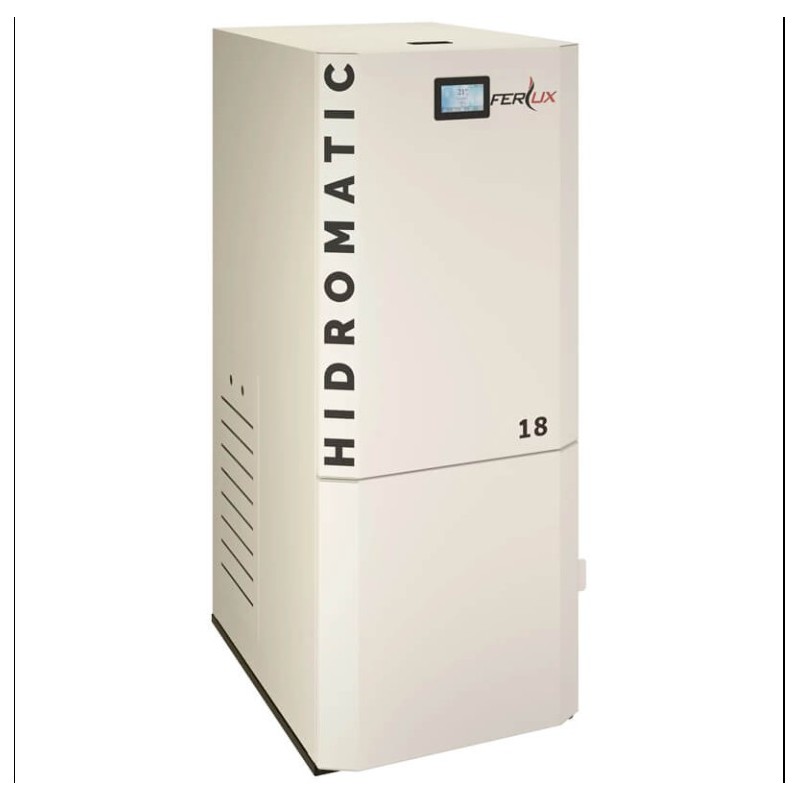

Ferlux Hydromatic Pellet Boiler 12kW

Hidromatic Ferlux 12kW pellet boiler self cleaning burner.
The 12kW Ferlux pellet boiler with self-cleaning burner, has an efficiency of 95-96% and a capacity of 90kg of pellets to heat a volume up to 250m3.
The Ferlux pellet boiler includes thermal protection valve.

The Hidromatic pellet boiler from Ferlux is a heating system made with the most advanced technology and a high level of quality that will allow you to enjoy the extraordinary sensation of warmth in total safety.
Energy Class: A++
At minimum speed (power-efficiency-autonomy-consumption) : 3.62kW – 96% – 129 hours – 0.7kg/h
At maximum speed (power-efficiency-autonomy-consumption) : 12.14kW – 95% – 33 hours – 2.7kg/h

Technical characteristics:
Built-in 8-liter expansion tank
Heating volume up to 250m3 (i.e. 100m² for standard ceiling height of 2.5m)
Standards : A-EN 303-5 Class 5, ECODESIGN 2022

Other features :
ConfortLux system, automatic adjustment of the air intake according to several parameters.
AF system for automatic combustion adjustment.
Thermal unit, includes expansion tank, high-efficiency hydraulic circulator, 3 bar safety valve, pressure gauge and automatic drain.
Fire-Stop control system to optimize pellet consumption.
Electronic and mechanical anti-explosion system (double safety).
Automatic burner cleaning system.
Automatic cleaning system for smoke passage pipes (performance maintained over time).
4 smoke passages to optimize yields.

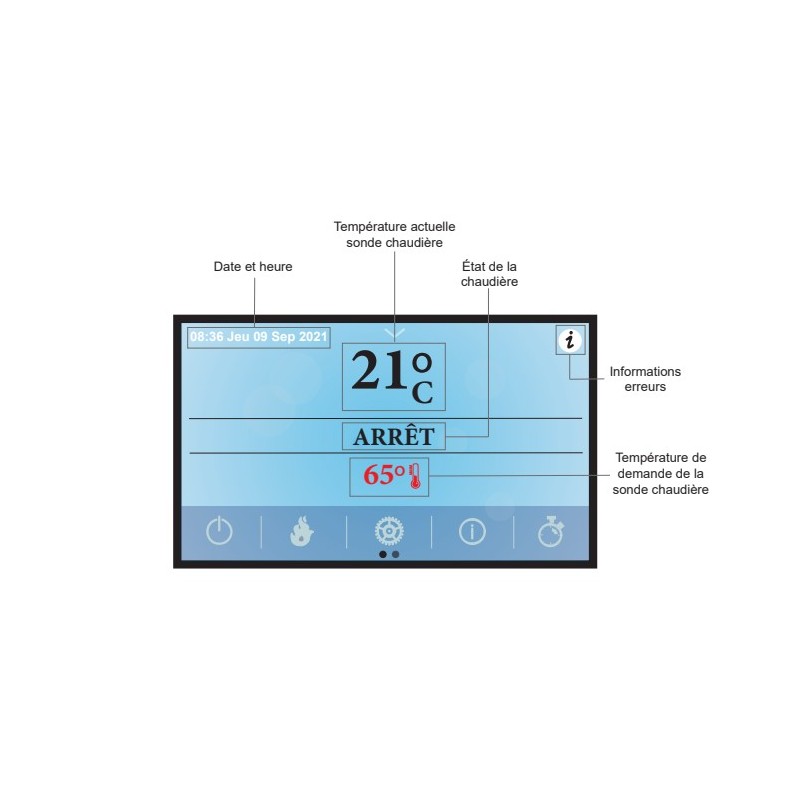

Hourly and weekly programmer.
Optional: 4-HEAT Wi-Fi remote control system.
Must be installed with a 3-way thermostatic valve 55°C (included).

Learn more:
Conforlux : Automatic combustion control system. Depending on the installed smoke outlet, the altitude of sea level and the type of wood pellets used, the amount of air required is automatically adjusted to always achieve perfect combustion, guaranteeing low emissions into the atmosphere and lower fuel consumption.

Automatic Combustion Power: The stove automatically selects the most suitable combustion power, taking into account the ambient temperature of the room and the desired temperature. More comfort and reduced fuel consumption

Thermal Group: The thermostove and boiler is equipped with a set of hydraulic elements such as the following: 8-litre expansion tank, high-efficiency electronic circulation pump, 3 bar pressure safety valve, pressure transducer and automatic drain. All this to ensure the user the greatest efficiency, safety and simplicity of installation.

Fire Stop: Automatic shut-off system that starts if the ambient temperature is higher than three degrees above the user's desired temperature. It will automatically restart when it cools down one degree from the setpoint temperature. This ensures better comfort and lower fuel consumption.

Explosion-proof : The stove is equipped with a double safety system, the first electronic and the second mechanical. This ensures complete security of the device

Automatic Cleaning of the Smoke Passage: During operation, the smoke passage cleaning system is activated automatically via turbulators, which causes combustion residues to fall into the ashtray. Increased efficiency and reduced fuel consumption.

Automatic Burner Cleaning: The burner at each start, stop and during operation performs automatic cleaning. Ash and combustion residues fall through an electronically controlled rotary motion system

Four passes of Smoke: Designed for high performance with a long path made in four smoke stages and, allowing maximum use of the heat generated by combustion and high efficiency. This ensures greater comfort and reduced fuel consumption.

Time Programmer : System that allows up to three daily ignitions and three daily stops to be set automatically. You can select three different ways to do this scheduling: daily, weekly, or on weekends.

4 HEAT : With this system, we can monitor and control all the functions of the stove and/or boiler from our mobile or tablet through an application compatible with "ANDROID", "IOS" and "Windows PHONE", allowing us more comfort. Optional.

Remote Control: All our Ferlux stoves are equipped with remote control, which allows you to turn on, unplug and adjust the combustion power, without having to get close to the equipment

Fuel:The Ferlux pellet boiler has been designed to burn wood pellets that comply with the conditions set out in the UNE-EN ISO 17225:2014 Solid Biofuels standard and in the ÖNORM M 7135 standard.
Pellets or pellets are a combustible material made by pressing dry natural sawdust, they are easy to make compact, the lignin serves as a clumping, so no glue or other substances are needed. This process gives it a shiny appearance as if it were varnished and makes it denser. They are cylinders of a few millimetres in diameter, their humidity level is very low and in addition they require little storage space (to produce the same heat, the stored pellet occupies three times less volume than wood).

Notes: Installation and Maintenance
Wood and pellet heating appliances and accessories must be installed according to the rules of the art and in accordance with the regulations in force, in compliance with D.T.U.24-2-2.
It is mandatory to have it commissioned by an approved technician in your area (verification of the conformity of the installation, settings and first ignition).
A commissioning is not an installation, it takes place after the installation is completely completed. This commissioning by an authorized technician in your area validates the warranty. It is recommended to take out a maintenance contract with the professional technician.
The installation of Ferlux boilers must be carried out only by authorised personnel, following the manufacturer's instructions and in accordance with the regulations in force.
Warranty: 2 years.

Dimensions – Volumes :

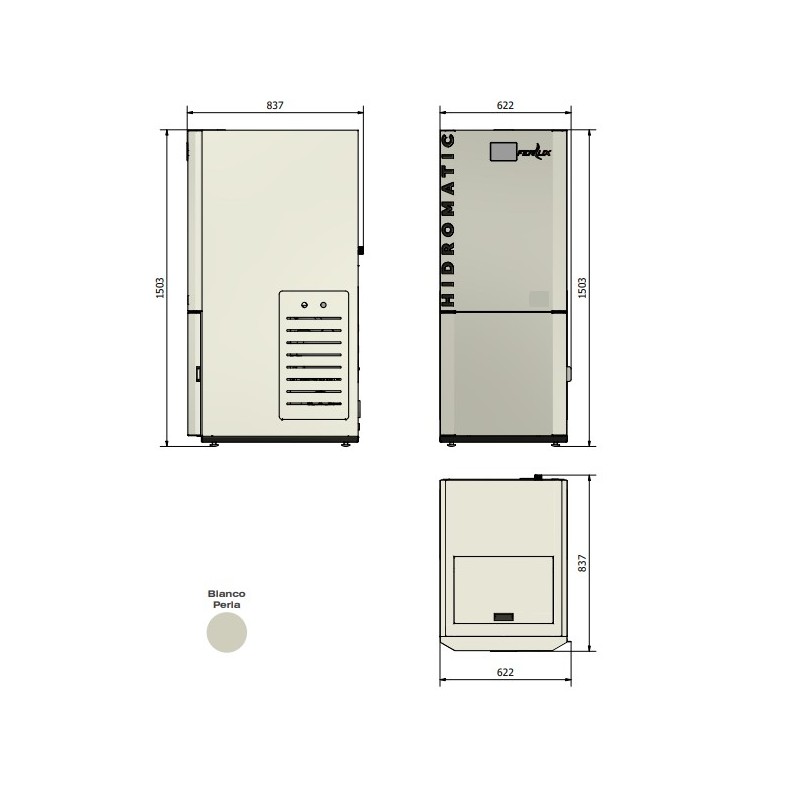

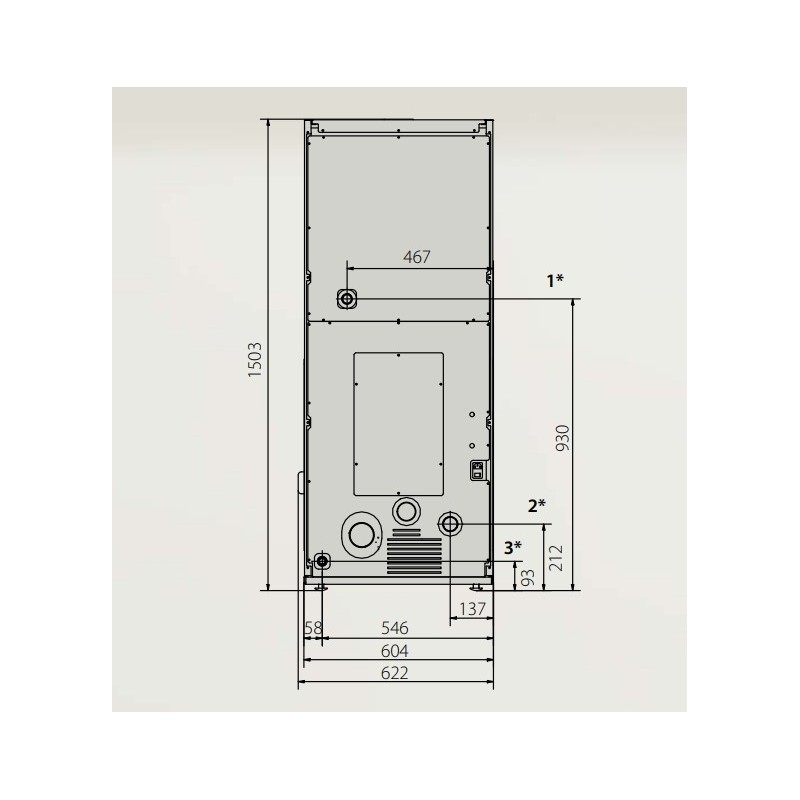

Overall W.622 D.837 H.1503 mm

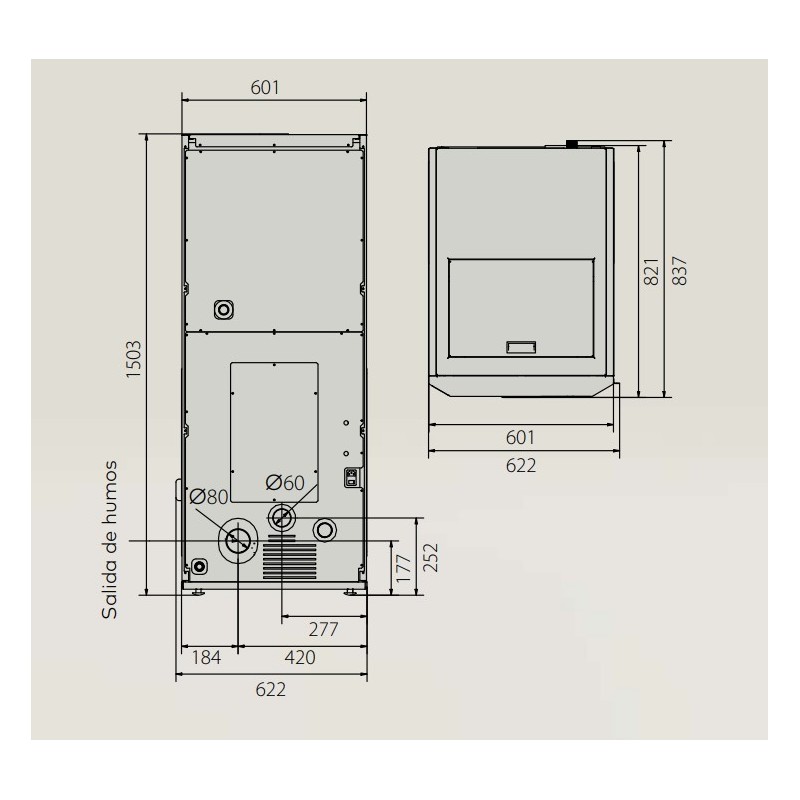

80mm smoke outlet, must be connected to 100mm minimum ducts
60mm air inlet
Approx. 90 kg pellet loading capacity
Weight 340 kg

Technical Information :
SMOKE OUTLET DIAMETER (*). 80mm
PRIMARY AIR INLET DIAMETER: 60mm
VOLUME OF WATER IN THE BODY: 38 liters
BATTERY LIFE (minimum -maximum) 129-33 hours
HEATING VOLUME: 250m3
USABLE RATED POWER: 12.14kw
MINIMUM USABLE POWER: 3.62kW
FLUE TEMPERATURE: 94°C
BOILER CLASS (ONE EN 303-5): Class 5
PERFORMANCE (P.T.N - P.T.R) : 95% - 96%
FUEL CONSUMPTION (MIN-MAX): 0.7 . 2.7 kg
10% O.C. CONCENTRATION (N.T.P.): 98.76 MG/M3N
10% O2 OGC CONCENTRATION (N.T.P): 11.99 MG/M3N
10% O2 PARTICULATE MATTER (P.T.N): 15.79 MG/M3N
10% O.C. CONCENTRATION (T.R.P.) 123.43 MG/M3N
10% O2 OGC CONCENTRATION (T.R.P.) 12.98 MG/M3N
MAX. WATER OPERATION: 2 BAR
MAXIMUM WORKING PRESSURE: 2.5 BAR
PRESSURE TEST: 4.5 BAR
MINI WATER RETURN TEMPERATURE: 55°C
MAXIMUM WORKING TEMPERATURE: 80°C
STACK DRAFT: 0.12 MBAR
PRESSURE DROP FOR ∆T = 20 K (water side): 89 MBAR
DISCHARGE CONNECTION: 1
RETURN CONNECTION: 1
POWER SUPPLY: 230V/50Hz
MAX. POWER CONSUMPTION ON: 450W
MAX. POWER CONSUMPTION (PTR): 30 W
MAX. POWER CONSUMPTION (PTN): 90 W
STANDBY POWER CONSUMPTION: 1 W
GENERAL POWER PROTECTION: 3.15A
ELECTRONIC BOARD PROTECTION: T5.0 A fuse.
